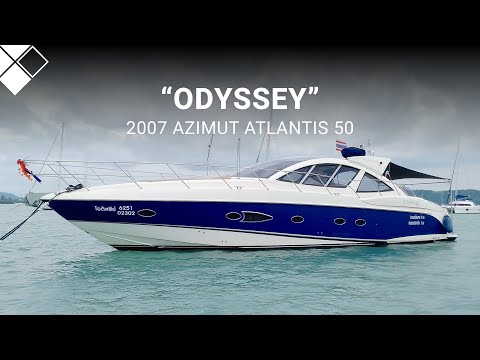

Vessel Name – Odyssey

Make – Azimut

Model – Atlantis 50

Year – 2007 - Refit 2021

Length – 15.37m / 50.43ft

Beam – 4.45m / 14.60ft

Draft – 1.47m / 4.82ft

Displacement – 16,000 Kg - Lightship / 19,360 Kg - Full load

Fuel Capacity – 1,900 L

Water Capacity – 500 L

Hull Material – Fibreglass

Deck Material – Fibreglass

Keel Type – Deep-V planing

Designer – Azimut–Benetti, 29025 Sariano di Gropparello, Piacenza, Italy

Builder – Azimut–Benetti, 29025 Sariano di Gropparello, Piacenza, Italy

HIN – IT-GOB8B022G707

Place of Registration – Phuket, Thailand

Registration Number – 6251 02302

Registration Expiry – 6th March 2026

Number of Helms & Position – 1 to starboard

Tax Status & Paid Where – Paid in Thailand

Lying – Phuket, Thailand

Last Antifouling – October 2025

Engines

Number of Engines – 2

Engine Make – Volvo Penta

Engine Model – D12-800 turbocharged 6-cylinder inline diesel

Horsepower – 570kW / 775 Hp @2,300rpm

Engine Year/s – 2007

1st Engine Number – Port: 1012617977

1st Engine Hours – 2,190 Hrs - ECU replaced in 2024, Current reading shows 735 Hrs

2nd Engine Number – Starboard: 1012619940

2nd Engine Hours – 2,190 Hrs

Last Service – October 2025

Fuel Consumption – Max 247 L/Hr @ 32 Knots, Cruise 170 L/Hr @ 28 Knots

Fuel Type – Diesel

Maximum Speed – 32 Knots

Cruise Speed – 28 Knots

Propellers – 4-blade fixed pitch

Thrusters – Side-Power SP95Ti 24V electric bow thruster

Drive Type – Shaft Drive

Steering System – Hydraulic steering system

Accommodation

Cabins – 3

Single Berths – 2

Queen Berths – 1

King Berths – 1

Head Height – Adequate throughout

Bathrooms

Showers – 2

Heads – 2

Heads Type – Electric

Holding Tanks – 189 L Grey & black water

Hot Water Capacity – 80 L

Galley

Galley Location – In saloon to port

Refrigeration – Galley – 24V built-in STL Frigoboat fridge and freezer; Main deck – 12/24V Isotherm fridge with small freezer compartment

Freezer – See "Refrigeration"

Stove – Ceran 2-burner glass ceramic stove in galley & cockpit

Sink – Single stainless steel sink & wetbar in cockpit

Microwave – Panasonic microwave oven

Electronics

Depth Sounder – Raymarine ST60+ Tridata LCD display

Log – Raymarine ST60+ Tridata LCD display

Autopilot – Raymarine ST6002 SmartPilot autopilot controls

Radar – Raymarine 18" 4 kW radome, 48 nm range

Chartplotter – Large Raymarine E120 LED multi-display & Garmin GPSMap

GPS – Large Raymarine E120 LED multi-display

VHF – Raymarine Ray240E VHF/DSC

TV – LG flat screen LED TV in saloon

Stereo – Cockpit: Fusion MS-RA70N with 2 Clarion and 2 Fusion marine speakers; Saloon: 4 LG cube speakers with subwoofer

Batteries

Battery House – 2 × 12v 150 Amp/Hr lead-acid in parallel/series

Battery Engine – 4 × 12v 200 Amp/Hr maintenance-free in parallel/series

Battery Charger – Victron Centaur 24v/60A, Quick SBC 12v/6A automatic chargers

Electrical Equipment

Watermaker – Sireg 140L/Hr

Generator – Mase IS 12 S, rated 230v / 50Hz / 44.3A @1500rpm

Genset Hours – 10,339 Hrs Overhauled October 2025

Air Conditioning – Cruisair split-type chiller system with 5 air handlers, tropical specification, 60,000 BTU capacity

Alternator – 2 x 100A main engine alternators

Shore Power – 2 x 220v - Domestic & Air-conditioning

Safety Equipment

Bilge Manual – 2 manual diaphragm pumps

Bilge Electric – 2 × 24v submersible, 24v remote-mounted

Life Raft – Sea-Air ISO 9650-1 8-person with Type 2 emergency pack in GRP container

Life Jackets – Adequate quantity of Thai Marine Department approved PFD's

Life Ring – Plastic life ring with reflective strips

Flares – Flare kit provided

Fire Extinguisher – FM200 29 Kg manual/automatic system fitted in engine room; 5 × 1 Kg and 2 Kg dry chemical; 2 Kg CO₂

Ground Tackle

Anchor – Galvanized steel plough-type anchor 30 Kg

Chain / Rope – 10mm galvanized steel chain 40m

Windlass – Quick 24v with vertical capstan

Deck Gear & Accessories

Davits / Platform – Tender Lift – Hydraulic passerelle, tender lift not in working order

Deck Wash – Saltwater anchor wash fitted

Deck Shower – Hot- & cold water deck shower

Bimini – Yes

Enclosures – Cockpit is fully enclosed

BBQ – 2-burner glass ceramic stove

Mooring Lines / fenders – Adequate in size and number

Notes – Cockpit Sunroof – Electric sunroof, not in working order

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
