Engine
Sole Mini 29
Total Power
54hp
Engine Hours
600
Class
Catamaran sailboats
Length
12.98m
Year
2022
Model
43
Capacity
-
The Yacht Sales Co.
The Yacht Sales Co.
Boat Details
Description
Location: Phuket, Thailand

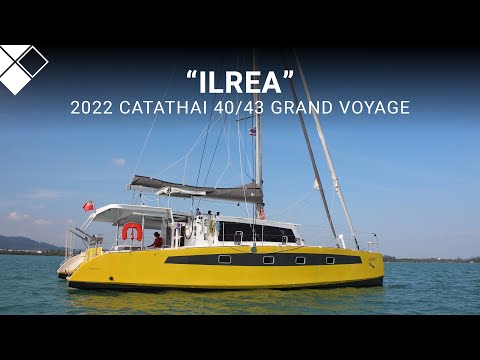

2022 Catathai 40/43 Grand Voyage | Ilrea
Ilrea is a fully equipped near new three-cabin sailing catamaran offering an outstanding opportunity to step into fast, comfortable cruising with nothing more to spend. Now available in one of the world’s premier cruising destinations, she presents exceptional value and performance in a highly refined package.
She is the factory extended 43 foot version of the Catathai 40 Grand Voyage, designed by the renowned French naval architecture team Jean and Frasca Design. The result is a sleek and efficient cruising catamaran that blends performance, comfort and practicality.
The spacious saloon and galley are seamlessly integrated with the large covered cockpit on the same level, creating an expansive open-plan living area with excellent ventilation and near 360 degree visibility. The layout provides generous space for entertaining both inside and out.
Sailing systems are simple and well thought out with all control lines led aft to the elevated helm station under a bimini. This allows for easy and safe short handed sailing. The interior navigation station enjoys excellent forward visibility and is conveniently positioned adjacent to the owner’s suite.
Flat decks ensure safe and easy movement around the yacht with direct access to the forward trampolines for relaxation and enjoyment underway. Multiple seating and lounging areas in the cockpit under the hard top further enhance onboard comfort.
Light displacement of approximately 6 tonnes combined with a 101 sqm mainsail and headsail area delivers impressive performance, with strong upwind capability and excellent off wind speed when flying the 80 sqm gennaker.
The current owner has enjoyed Ilrea since her launch in 2022 following Covid related build delays and has since refined and upgraded many onboard systems, resulting in a well sorted and highly maintained vessel in near new condition. She was antifouled and her two engines with approximately 600 hours each were serviced in January 2026 and she is currently dry stored.
Currently for sale in Phuket with international shipping available, Ilrea represents a superb opportunity for fast cruising enthusiasts. Contact the Multihull Solutions Asia office to arrange an inspection or for further details.
Contact Information
More Details
Inventory - Ilrea
Vessel Name - Ilrea
Make - Catathai
Model - 40/43
Year - 2022
Length - 12.98m / 42.6ft
Beam - 6.95m / 22.8ft
Draft - 1.15m / 3.77ft
Air Height - 18.6m / 61ft
Displacement - 6,000 Kgs
Fuel Capacity - 300 L - 2 x 150 L
Water Capacity - 440 L - 2 x 220 L
Hull Material - GRP Vacuumed Vinylester Divinycel Foam Composite
Deck Material - GRP Vacuumed Vinylester Divinycel Foam Composite
Keel Type - Mini Keels
Designer - Jean and Frasca Yacht Design
Builder - Catathai Co. Ltd
HIN - THCAT40G02F716
Place of Registration - Langkawi
Registration Number - 701877
Registration Expiry - March 2027
Number of Helms & Position - 1 - Cockpit, Starboard side
Lying - Phuket, Thailand
Last Antifouling - December 2025
General Notes - Immaculate catamaran, dry stored every year when not in use. Launched in 2022 after build delays and Covid
Engines
Number of Engines - 2
Engine Make - Sole
Engine Model - Mini 29
Horsepower - 2 x 27 Hp
Engine Year/s - 2019
1st Engine Number - A42480
1st Engine Hours - ~600 Hrs
2nd Engine Number - A42481
2nd Engine Hours - ~600 Hrs
Last Service - January 2026
Fuel Consumption - 2 L / Hr / engine at cruise speed
Fuel Type - Diesel
Maximum Speed - 8 Knots
Cruise Speed - 6 Knots
Propellers - 2 Blade folding with rope cutters
Drive Type - Shaft
Steering System - Lacomble & Schmitt Hydraulic
Notes - Well maintained with synthetic teak in Cockpit and sugar scoops.
Accommodation
Cabin - 3
Double Berths - 1 Port bow cabin
Queen Berths – 2 Aft cabins in each hull
Drop Down Saloon - King bed with mattress using exterior cushions
Head Height - 1.85m / 6.066ft
Notes - White epoxy finished interior with navigation table starboard forward in Saloon. 4 Lewmar portholes in each hull with 12v fans in each cabin
Bathrooms
Showers - 2
Heads - 2
Heads Type - Electric
Notes - Owners hull has separate shower cubical and head
Galley
Galley Location - Up - Port side
Refrigeration - 170 L - 12 v / 24 v Isotherm, top loading
Freezer - 400 L Isotherm, top loading
Stove – Parker 2 Burner gas
Oven - Parker
Sink - 1
Notes - Ample counter & storage space
Electronics
Depth Sounder - B&G forward scan
Log - B&G
Autopilot - B&G x 2. at helm and Nav station, with remote
Wind Instruments - B&G
Chartplotter - B&G Zeus 9"
AIS Auto ID System - B&G Camino108 transponder
GPS - B&G
VHF - Radio Ocean 6700 fixed VHF, plus 1 portable VHF
Stereo - Distinct stereo with speakers inside and out
Notes - WiFi 1 Go free system, navionics chart viewer, B&G triton pack
Batteries
Battery House - 600 ah - 4 x 150 ah AGM
Battery Engine - 90 ah Each engine
Battery Charger - M300 CTEK
Notes - Batteries located next to mast
Electrical Equipment
Watermaker - Ecotec 60 L / Hr
Solar Panels - 1000w - 4 x 250 w with MPPT Controller
Inverter - Fangpsun 1800w
Alternator - Sole on engine
Shore Power - 220 v
Notes - Victron Battery Monitor, USB chargers in each cabin, saloon and cockpit, 2 - 12v sockets. 2 - 220v power sockets from the 1800 Inverter
Sail Inventory
Mast Material - Alloy Z spars, 2 spreader rig
Standing Rig Material - Stainless steel
Standing Rig Age - 2020
Age of Sails - 2021
Main Sails - 64 m2 Rolly Tasker Dacron. Fullly Battened and stack Pack
Headsails - 38 m2 Rolly Tasker Dacron, Tri-radial cut
Screecher / Gennaker - 80 m2 Rolly Tasker Dacron, Tri-radial cut
Bowsprit - Stainless steel
Furlers - 2 - 1 Jib and 1 Screecher
Winches - Antal XT40 and XT 48 electric. Lewmar 46 on mast
Notes - All lines back to helm position
Safety Equipment
Bilge Manual - 1
Bilge Electric - 7 Includes 1 in each engine room
Life Jackets - 4
Life Ring - 2
Flares - Various
Fire Extinguisher - 2 – 1 Kg
Ground Tackle
Anchor - 25kg Spade
Chain / Rope - 90 m of 10 mm chain
Spare Anchor - 1 x Danforth
Chain / Rope - 10 m Chain and rode
Windlass - Lofrans project X2 1000 w
Notes - Remote for anchor winch at helm station.
Deck Gear & Accessories
Tender - Highfield 2.9m RIB, with fabric UV covers for hull tubes. RIB cover when on Davits
Tender Outboard - Yamaha Enduro 8 Hp
Davits / Platform - Davits
Deck Wash - 1 Aft in sugar scoop and 1x at mast, salt and water wash
Deck Shower - 1 Aft
Bimini - Solid over complete cockpit
Enclosures - 3 For shade in cockpit and helm enclosure
BBQ
Mooring Lines / fenders - Various
Notes - Bimini is also a water collector for the water tanks. The Saloon Door is very large and opens up to the roof to create a large opening. Tramps are Ferrari netting. Large storage lockers throughout.
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Need more details?
Ask the seller
Propulsion
Engine 1
Engine Make:Sole
Engine Model:Mini 29
Engine Year:2022
Total Power:27hp
Engine Hours:600
Engine Type:Inboard
Drive Type:Direct Drive
Fuel Type:Diesel
Propeller Type:2 Blade
Engine 2
Engine Make:Sole
Engine Model:Mini 29
Engine Year:2022
Total Power:27hp
Engine Hours:600
Engine Type:Inboard
Drive Type:Direct Drive
Fuel Type:Diesel
Propeller Type:2 Blade
Measurements
Speed & Distance
Cruising Speed:6kn
Max Speed:8kn
Dimensions
Length Overall:12.98m
Max Draft:6.9m
Min Draft:1.15m
Beam:1.15m
Miscellaneous
Windlass:Electric Windlass
Liferaft Capacity:4
Electrical Circuit:220V
Hull Material:Fiberglass
Hull Shape:Catamaran
Keel Type:Other
Tanks
Fresh Water Tank:2 x 220 l
Fuel Tank:2 x 150 l
Holding Tank:
Accommodations
Cabins:3
Heads:2
Want more specs?
Ask the seller
