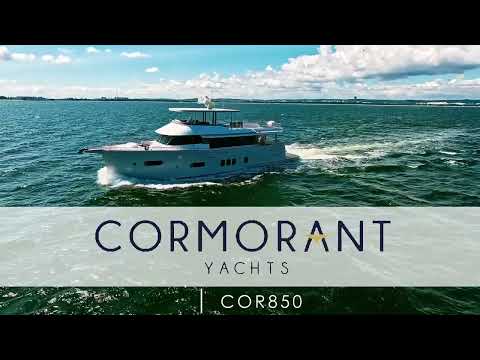

COR850 MOTOR YACHT

This is a yacht for anyone who appreciates restrained elegance, space, comfort.
It is a development of the excellent COR780 model.

The extended version has even more space, for four comfortable cabins, a huge salon, galley. Aftdeck.
The flydeck is huge and durable, you can successfully place a RIB, Jetski on it.

Because our concept of building a yacht according to the principles of a bygone era. Structurally strong, spacious and very quiet.

Getting rid of complicated equipment. We can build a yacht from the highest quality components such as:
MAN, ZF, SLEIPNER, KOHLER, VICTRON ENERGY, SIMRAD.
While maintaining a reasonable price.

According to the possibilities of our shipyard, the customer still has the opportunity to choose the interior and finish.

Below is a shortened specification:

• CONSTRUCTION

• GENERAL CONCEPT, HULL AND BOTTOM VERY HEAVY, TOP RIGID AND LIGHT

• GRP - ENLARGED 50mm - 2"

• STRINGERS - DOUBLE HEIGHT BOTTOM AND SIDE - TOTAL 12 PCS

• BODY TYPE

• WIDE BODY WITH FLYBRIDGE

• SEMI RAISED PILOT HOUSE STYLE

• DECK EQUIPMENT

• ALL DOORS WATERPROOF - HEAVY DUTY TYPE

• PILOT HOUSE DOORS SPLIT - DUTCH STYLE

• GLAZING, TWO OR THREE LAYERS - 19 mm 3/4"

• PORTLIGHTS FROM LEWMAR

• STERN STB. SIDE GATE - INCLUDED

• BIMINI OR HARDTOP - OPTIONAL

• BOW ANCHOR STATION WITH 75KG/165lbs ANCHOR AND 24VDC WINDLASS

• NAVIGATION MAST - INCLUDED

• WETBAR WITH PLACE FOR GRILL

• FOLDING MAST AND WINDSCREEN - OPTION

• INTERIOR

• GENRAL LAYOUT - 4x STATEROOM AND 3xHEAD + DAYHEAD

• INTERIOR FINISHING - TYPE 1 WITH MODIFICATION

• PILOT HOUSE - FULL SIZE WITH FULL WIDE NAVIGATION CONSOLE

• PILOT HOUSE - NAVIGATION TABLE

• PILOT HOUSE - SOFA

• PILOT HOUSE TWO CAPTAI'S CHAIRS

• GALLEY - FULL SIZE

• GALLEY - BOSCH HARDWARE (COCKTOP, OVEN, DISHWASER)

• GALLEY - REFRIGERATOR FREEZER

• SALON WITH L SHAPE DINING SOFA, TWO CHAIR, TV UPBOARD

• UTILITY ROOM - WITH PLACE FOR ADDITIONAL FREZZER, WASHER, DRYAER

• STORAGE - TOPCOAT FINISHING

• PROPULSION

• TWIN CONFIGURATION WITH WET EXHAUST

• MAN ENGINES HEAVY DUTY IN-LINE SIX 500HP WITH ZF TRANSMISSION

• ISOFLEX ANTI VIBRATION COUPLING

• 4-BLADE 40" PROPELLERS

• ENGINE ROOM VENTILATION WITH 3X FANS

• CHANGE OIL PUMP

• ENGINE ROOM FINISHING WITH 100mm/5" ACOUSTIC ISOLATION AND PERFORATED PANELS

• ENGINE ROOM - WORKING TABLE

• ENGINE ROOM - FIRE PROTECTION SYSTEM WITH NOVEC

• FUEL SYSTEM

• FUEL 2xTANKS - TOTAL 5600L/1478GAL

• PRIMARY FUEL SYSTEM

• TRANSFER PUMP

• STEERING SYSTEM

• CLASSIC HYDRULIC SYSTEM WITH ONE WHEEL PUMP IN PILOT HOUSE

• DUAL CYLINDER TILLER ARM

• PILOT PUMP 24VDC ONE-DIRECTION ROTATION PUMP AND SOLENOID VALVES

• JOG LEVEL STEERING FOR PILOT HOUSE AND FLY BRIDGE STATION

• STABILISATION AND THRUSTERS

• SLEIPNER VECTOR FINS 1,15m2- 24VDC - INCLUDED

• BOW THRUSTER EVISION TYPE E250 FROM SLEIPNER WITH PROPORCIONAL CONTROL

• BOW THRUSTER 11,1kW/14,9HP - WITH LONG TIME OPERATION

• STERN THRUSTER EVISION TYPE E250 FROM SLEIPNER WITH PROPORCIONAL CONTROL

• STERN THRUSTER 11,1kW/14,9HP - WITH LONG TIME OPERATION

• PLUBLING AND PUMPS SYSTEM

• 3x BILGE PUMP - WHALE

• DOMESTIC AND HEATING SYSTEM - VIEGA COMPONENTS PEX

• HOT WATER BOILER - WEBASTO 60L

• GREY/BLACK WATER PUMP OUT - WHALE GULPER

• GREY/BALCK WATER TANK CAPACITY - 800L/211GAL

• TECMA TOLIETS

• FRESH WATER TANK - 2000L/528GAL WITH PRESURE PUMP

• VALVE GALLEY FOR OUT BOARD DIRECTION GREY WATER

• VENTILATION SYSTEM

• SMOKE DETECTION SYSTEM

• PILOT HOUSE FRESH AIR INTAKE

• HEADS - VENTILATION FAN WITH SWITCH

• GALLEY - EXHAUST HOOD

• A/C SYSTEM

• 54.000 BTU WEBASTO A/C COOLING AND HEATING SYSTEM - INCLUDED

• REPLACEMENT TO A/C HEATING SYSTEM WITH WATER HEATER - OPTION

• ELECTRICITY SYSTEM

• 50Hz OR 60Hz - OPTION W/O EXTRA CHARGE

• KOHLER POWER GENERATOR 9EFKOZD 9kW / 50Hz

• KOHLER POWER GENERATOR 11EFKOZD 11kW / 60Hz - (FOR 60Hz OPTION)

• 2x140A ALTERNATORS

• VICTRON QUATTRO INVERTER 24/230V - 3000VA (2400W)

• VICTRON POWER ASSIST - +3000W FOR SHORE OR POWER GENERATOR PEAK POWER

• HOUSE BATTERY BANK - AGM 480AH/24V (4pcs.)

• SHORE SOCKETS - 1.HAVC, 2.HOUSE, STERN LOCALIZATION (32A or 60A for 60Hz)

• ENGINE BATTERY BANK AGM 240AH/24V

• POWER GENRATOR AGM 110A/12V

• SWITCHBOARDS - MS-1, MS-2, MS-3 WITH DISTRIBUTION POWER - SCHNIDER ELECTRIC

• STAB AND THRUSTER BATTERY BANK FOR VECTOR FINS AND BOW THRUSTER 480AH/24V

• SECONDARY VICTRON INVERTER/CHARGER FOR STABILIZER AND THRUSTER SYSTEM

• BATTERY BALANCER

• 24VDC INTERIOR AND EXTERIOR LIGHT

• ORION 24/24VDC STABILIZER

• ORION 24/12VDC STABILIZER-CONVERTER

• PILOT HOUSE NAVIGATION AND CONTROL EQUIPMENT

• MAN iSEA - HQ INSTRUMENTS SET

• EMERSON MAREX ECS CONTROL SYSTEM WITH INDEPENDENT CAN-BUS

• CORMORANT COMMAND 1 - CONTROL TYPE WITH MOMENTARY SWITCH AND FINDER RELAY

• VICTRON ENERGY 712 BATTERY MONITORS - 3 SETS

• PILOT SYSTEM - SIMRAD NAC-3 COMPUTER

• PILOT SYSTEM - JOG LEVEL STEERING CONTROL

• PILOT SYSTEM - SIMRAD AP48 - PILOTH HOUSE

• PILOT SYSTEM - SIMRAD RF25N FEEDBACK RUDDER POSITION

• SATELITE COMPASS - SIMRAD PRECISION 9

• RADAR - SIMRAD HALO24 - 48NM, SHORT AND LONG DISTANCE, DOUBLE DISTANCE LAYER

• SIMRAD NAVIGATION MFD - 4x NSO EVO3S 24" DISPLAY (PILOT HOUSE)

• SIMRAD NAVIGATION MFD - 2x NSO EVO33S 19" DISPLAY (PILOT HOUSE)

• AIRMAR DST810 Gen2 Through-hull Transducer (DEEP, TEMP, SPEED)

• COMMUNICATION

• VHF 1 - RS40B

• HS40 ADDITIONAL HANDSET WITH BASE CHARGE

• AIS TRANSPONDER CLASS B TRANSCEIVER

• VHF 2 - ICOM IC-M37E HANDHELD WITH BASE CHARGER

• SAT IRIDIUM COMMUNICATION GARMIN - inReach® Mini 2 Marine Bundle WITH BASE

• SHAKESPEARE 5101-S VHF 1 ANTENNA

• SHAKESPEARE 5101-S AIS ANTENNA

• ENTERTAINMENT

• SALON TV 55" WITH LIFT

• INTERNET ROUTER PEPLINK BR1 LTE WITH MAST ANTENA

• SHAKESPEARE SA-HDTV-MAR10 ANTENNA

• AUDIO SYSTEM FUSION MS-RA60 WITH 8xSPEAKER

BESPOKE FINISH
As our flagship, the COR 850 offers the highest level of customization. Every interior element is tailored to the owner's specific taste, ensuring that your home on the ocean is as unique as your journey.

Please contact Damian Dymecki at +48 606 615 688
